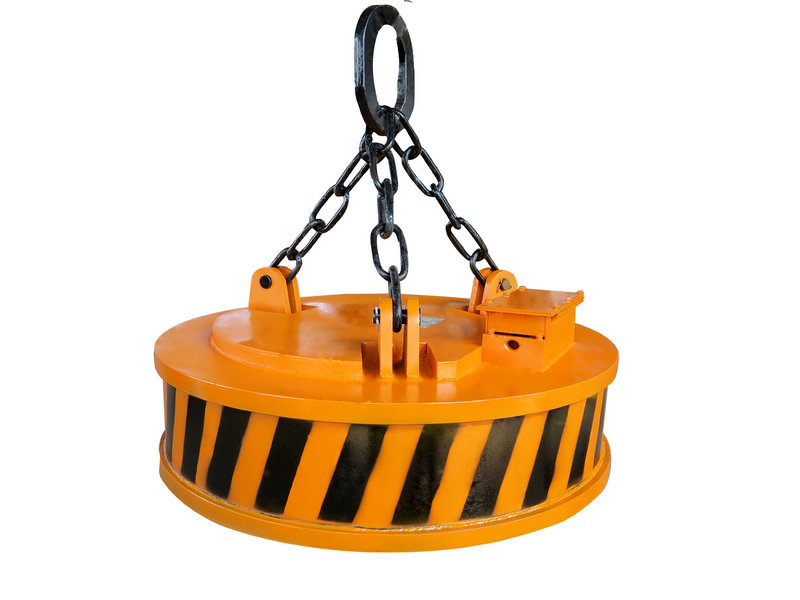

MW5 standard series lifting scrap lifting magnet

MW5 standard series lifting scrap lifting magnet

MW5 standard series lifting scrap lifting magnet









Features:
1, light weight, large lifting capacity. Coil using aluminum, and uses a unique circuit design to reduce weight, the protective plate coils using good wear resistance of high manganese plate, which not only improves the lifting capacity, but also reduce the weight of the device itself.
2, the structure is simple, safe and reliable, suitable for all types of lifting equipment.
3, in addition to using constant voltage, but also the use of strong excitation mode. Both increase the lifting capacity, but also improve economic efficiency.

主要技术参数:

型号
MW5-70L/1
MW5-80L/1
MW5-90L/1
MW5-110L/1
MW5-120L/1
MW5-130L/1
MW5-150L/1
MW5-165L/1
MW5-180L/1
MW5-210L/1
MW5-240L/1



A
mm
700
80
900
1100
1200
1300
1500
1650
1800
2100
2400
B
850
80
1090
1140
1100
1240
1250
1590
1490
1860
2020
C
160
160
200
220
220
250
350
370
370
400
450
D
90
90
125
150
150
175
210
230
230
250
280
E
32
30
40
50
45
60
60
75
75
80
90
自重
Kg
500
620
810
1350
1700
2100
2800
3200
4200
7020
9000
冷态电流
A
15.0
18
26.6
35
45.5
54
71.2
75
102.4
123
154
消耗功率(冷态)
KW
3.3
3.96
5.86
7.7
10
11.9
15.6
15.6
22.5
27
33.6



钢球
Kg
2500
3000
4500
6500
7500
8500
11000
12500
14500
14500
26000
铸铁锭
380
/200
480
/250
600
/400
1000
/800
1300
/1000
1400
/1100
1900
/1500
2300
/1800
2750
/2100
3500
/2800
4800
/3800
切料头
380
/200
480
/250
600
/400
1000
/800
1300
/1000
1400
/1100
1900
/1500
2300
/1800
2750
/2100
3500
/2800
3500
/2800
铸铁切悄
120
/100
150
/130
250
/200
450
/400
600
/500
700
/600
100
/900
1300
/1100
1600
/1350
2200
/1850
2850
/2300




整流控制柜
STML-4w-c
STQL-7E-C
STQL-7E-C
STQL-9E-C
STQL-14E-C
STQL-14E-C
STQL-19E-C
STQL-19E-C
STQL-25E-C
STQL-32E-C
STQL-38E-C
电缆卷筒
TA100-10-2
TA200-15-2
电缆连接器
DL-120
DL-202
